| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Period: | Negotiation |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |

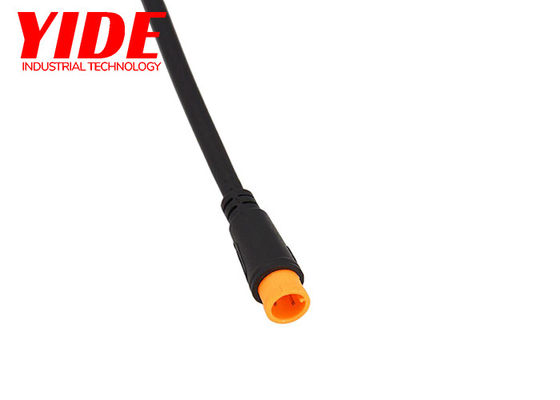

M8 Series Ebike Motor Extension Cable Waterproof Connector 3 Pin Male 2A 48V
1. product description
E-bikes have become a vastly successful alternative to classic bikes. Individual mobility for young and old has never been as important as today. E-bikes have become a symbol of urban life-style as well as a popular option in aging societies across the world to stay fit and active.
Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, screw locking M8 connectors will be a perfet option. it is widely used in many application.
2. application
Signal&power contal ans transmission of E-motorcycle
Our products are widely used in E-motorcycle ,electrical equipment ,automation machine ,electrical technology and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
3. advantages
Durable / temperature resistance /freeze-proofing
High current / low resistance
4. specification
| Brand: | YIDE |
| P/N: | YIDE-303 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name | M8 Series |
| Product Spec | 3PIN Male |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 48V |
| Rated current(25°C) | 2A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤200 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.14mm2-0.2mm2 |
| Application Area | |
| Signal contal and transmission of electric bicycles, balance bikes ans sooter | |
Plug/Unplug durability : 200 mating cycles
Connection Mode : Direct Plug-in
Direct plug-in docking assembly, simple to use and convenient installation
For low voltage, low current of signal products tailored.
The plug with compact structure and dainty appearance, is more suitable for the demand.
5. more picture
6. company profile
Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.
Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.
Our products are suitable for new energy electric vehicles, electric bicycles, electric motorcycles, scooters, balance vehicles and so on
It is also suitable for military equipment, medical aerospace plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.
We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.
Our mission is to live for safer and more efficient connectivity.
Fill the world with love and sunshine.
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
7. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
|
|
