| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Period: | Negotiation |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |

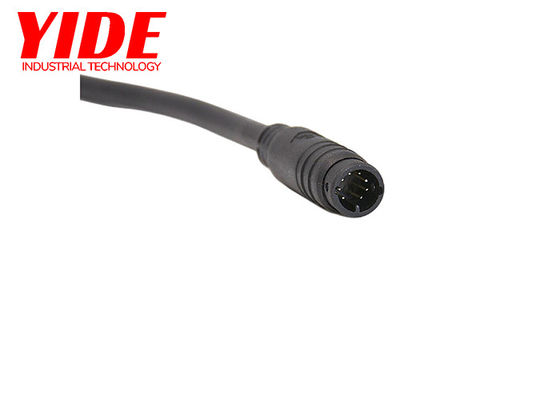

Male Female Plug Socket 2 3 4 5 6 8 Pin Straight Circular Cable Wire Connector
1. application
Signal&power contal ans transmission of E-motorcycle
2. advantages
Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, screw locking M8 connectors will be a perfet option. it is widely used in many application.
3. parameter
| Brand: | YIDE |
| P/N: | YIDE-313 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name | M8 Series |
| Product Spec | 8PIN male |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 48V |
| Rated current(25°C) | 2A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤200 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.14mm2-0.2mm2 |
| Application Area | |
| Signal contal and transmission of electric bicycles, balance bikes ans sooter | |
5. more picture
6. company profile
Our products are suitable for new energy electric vehicles, electric bicycles, electric motorcycles, scooters, balance vehicles and so on
It is also suitable for military equipment, medical aerospace plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.
7. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
|
|
