OEM Ebike Electrical Connectors Motorcycle IP67 Safety Current

OEM Ebike Electrical Connectors Motorcycle IP67 Safety Current

MOQ: Negotiable
Price: Negotiable
Delivery Period: Negotiation
Payment Method: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin
China
Brand Name
YIDE
Model Number
YIDE-320
Product Name:
E-Bike Connector / Ebike Cable Connector
Product Spec:
DC Charging
Resistance:
Vibration Resistance,impact Resistance
Material:
PVC Plastic / 66%PA+30%GF
Application:
Electric Bike Balance Bikes
Color:
Customized
Serivce:
ODM&OEM
Feature:
Sealed Against Dust And Fluid
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Delivery Time:
Negotiation
Payment Terms:
L/C, T/T, Western Union, MoneyGram
High Light:

OEM Ebike Electrical Connectors

,

Ebike Electrical Connectors

,

Electrical Connectors Motorcycle IP67

Product Description

Safety Current Ebike Cable Connectors For Electric Bike Balance Bikes


1. product description

1). Direct plug-in docking assembly, simple to use and convenient installation;
2). For low voltage, low current of signal products tailored;
3). The plug with compact structure and dainty appearance, is more suitable for the demand;
4). Mainly used for led strip, electric bicycle accessories and other signal lines.


More Secure and Reliable;
Solid Brass Nickel Plated Screws with Anti-vibration Loose Design, 48 Hours Salt Spray Tested;
Excellent Core Wire Cutting, Core Stripping and Welding Process;
the Special Flexible Material Cable Meets the Requirements of Mobile Wiring Drag Chain, Such As Bending Resistance and Abrasion Resistance;
Connector Assembly Method and Cable Length Can Be Customized.


2. application
Signal&power contal ans transmission of E-motorcycle
Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technology and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .

3. advantages
Sealed against dust and fluid (IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Cable assembly support
Customized cable size and length


2. specification

Brand: YIDE
P/N:

YIDE-320

MOQ: 500PCS/PER
Place of Origin: Kunshan City,China
Delivery Time: 1 week
Start Port: Shanghai

General features:
Product Name DC Charging
Product Spec DC 500
Connector locking system N/A
Degree of protection IP67
Ambient temperature(operation) -25°C~+85°C
Customs tariff number 8536901900
Environmental compliance RoHs, Reach

Electrical parameters:
Rated voltage 60V
Rated current(25°C) 15A
Withstand voltage 700V
Contact resistance ≤10mΩ
Insulation resistance ≥20MΩ

Mechanical performance:
Mechanical operation ≤200 mating cycles
Insertion force ≤20N
Pull out force ≥3N
Wiring range 0.2mm2-2.0mm2
Application Area
Signal contal and transmission of electric bicycles, balance bikes ans sooter





5. more picture

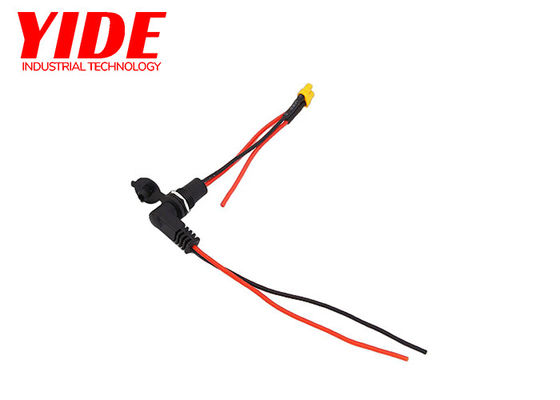

OEM Ebike Electrical Connectors Motorcycle IP67 Safety Current 0
6. company profile

Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.

Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.

Our products are suitable for new energy electric vehicles, electric bicycles, electric motorcycles, scooters, balance vehicles and so on
It is also suitable for military equipment, medical aerospace plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.

Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.

We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.

Our mission is to live for safer and more efficient connectivity.
Fill the world with love and sunshine.

Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.


7. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
