| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Period: | Negotiation |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |

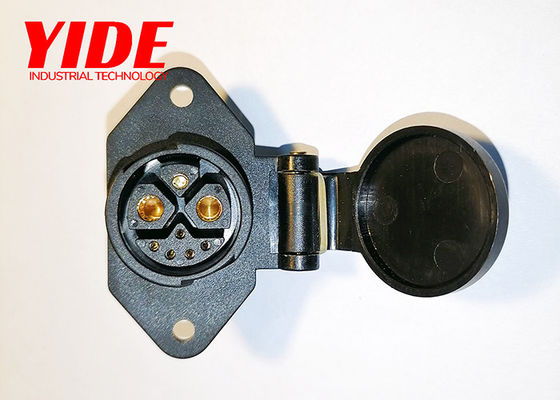

High Power Waterproof Connector For Signal & Power Contorl And Transmission Of E-Motorcycle
1. product description
High quality material: the wire is copper with nylon wrapped outside, and the conductor is plastic, safe material, with high chemical stability, electrical conductivity and oxidation resistance, waterproof electrical system water and dust, high detection performance.
Operating temperature: -25°C~+85°C .
Function Car electrical wire connector terminals with automotive blade fuses High pressure, safe connection reliable, not loose, lightweight. protect your car and electrical appliance from short circuit, overload, etc.
Wide Applications: This set of conductive plugs with wire can prevent water and dust. Ideal for motorcycle, scooter, car, truck, quad, caravan, marine, jet ski, boats, etc.
2. application
E-motorcycle,battery cable,lithium battery connector ETC.
Autmobiles,Electronics,Machines,Lighting,New energy
3. advantages
Durable / temperature resistance /freeze-proofing
High current / low resistance
4. specification
| Brand: | YIDE |
| P/N: |
YIDE-508-2 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| General features: | |
| Product Name |
50A 2 +1+ 5Pin charge connector |
| Product Spec | 2+1+ 5Pin Famale |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| Electrical parameters: | |
| Rated voltage | 96V |
| Rated current(25°C) | 50A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| Mechanical performance: | |
| Mechanical operation | ≤3000 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range |
0.2m2 -- 6.0m2 |
| Application Area | |
|
Signal & power contorl and transmission of E-motorcycle |
|
5. more picture
6. company profile
1 Our factory has 10 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
2 Competitive price.
3 Service concept: Making all efforts to offer value-added connector products and services to strengthen client’s competitive advantages.
products.
Our mission is to live for safer and more efficient connectivity.
Fill the world with love and sunshine.
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
7. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
|
|
