Interlock Motorcycle Cable Connectors IP67 2+5Pin Male Connector

Interlock Motorcycle Cable Connectors IP67 2+5Pin Male Connector

MOQ: Negotiable
Price: Negotiable
Delivery Period: Negotiation
Payment Method: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin
China
Brand Name
YIDE
Model Number
YIDE -515
Product Spec:
2+5Pin Male Charge Connector
Feature:
High Power Waterproof
Product Name:
Motorcycle Electrical Connector
Material:
PVC Plastic / NL66%PA+30%GF / Brass
Color:
Customized
Type:
Motorcycle Power Socket Connector
Serivce:
ODM&OEM
Sample:
Free
Certification:
UL,SGS,CE,MSDS,ISO9001,ROHS REACH,ETC.
Market:
Asia,America,EU,US, Mid East Africa
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Delivery Time:
Negotiation
Payment Terms:
L/C, T/T, Western Union, MoneyGram
High Light:

Interlock Motorcycle Cable Connectors

,

Motorcycle Cable Connectors IP67

Product Description

2+5Pin Male Waterproof Electric Motorcycle Power Socket Connectors





1. product description

this product can charge or discharging the electric and it also can provide a secure and reliable electrical connection between different motorcycle components, such as the battery, engine, and various sensors.

This is 2+5Pin Male High power waterproof electric motorcycle power socket connector.





2. specification

Brand: YIDE
P/N:

YIDE-515

MOQ: 500PCS/PER
Place of Origin: Kunshan City,China
Delivery Time: 1 week
Start Port: Shanghai

General features:
Product Name

90A  2 + 5Pin charge connector

Product Spec 2+ 5Pin Male
Connector locking system Interlock
Degree of protection IP67
Ambient temperature(operation) -25°C~+85°C
Customs tariff number 8536901900
Environmental compliance RoHs, Reach

Electrical parameters:
Rated voltage 96V
Rated current(25°C) 90A
Withstand voltage 500V
Contact resistance ≤10mΩ
Insulation resistance ≥20MΩ

Mechanical performance:
Mechanical operation ≤5000 mating cycles
Insertion force ≤20N
Pull out force ≥3N
Wiring range

0.2m2 -- 10.0m2

Application Area

Signal & power contal and transmission of E-motorcycle



3. application

 E-motorcycle,battery cable,lithium battery connector ETC.

Signal & power contal and transmission of E-motorcycle

Automation machine
Industrial PC
Marine device
Outdoor LED display
Outdoor LED lighting







4. advantages

1) Directly plug-in docking assembly, simple to use and convenient installation;

2) A special design integrated current and signal transmission in one;

3) The plug with compact structure and dainty apperance, is more suitable for the demand;

4) Mainly used for electric bicycle motor cables or battery cables.





5. more picture

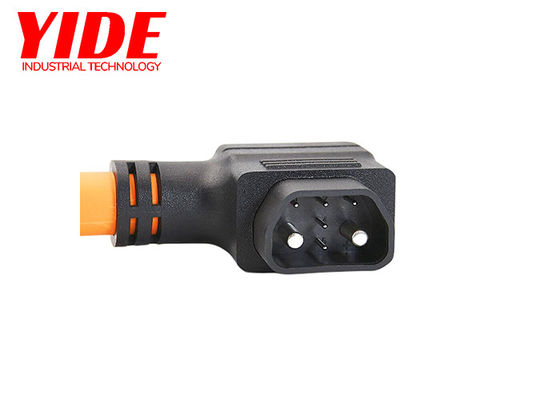

Interlock Motorcycle Cable Connectors IP67 2+5Pin Male Connector 0

6. company profile



Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.





1. Good services: We treat you as our friends.
2. Packaging: Package will do after several discussions with you.
3. Competitive price: The products are directly from our factory. So it saves a lot secondary cost.
4. Good quality: The YIDE only will start after you confirm the samples and the YIDE products will do 100% inspection before shipping.
5. OEM accepted: Please send us your design and other important information. OEM are always welcome.
6. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.





7. FAQ

Why choose us?

1) Using safer and more environmentally friendly materials

2) Adopt high quality brass, copper, brass lead-free alloy

3) Small resistance, fast current

4) Oxidation resistance, waterproof, high and low temperature resistance

5) More than 10 years of quality assurance for brand manufacturers' direct sales

6) According to product requirements + cable configuration

7) OEM+ ODM

8) After-sales service is guaranteed, 24-hour manual customers online
