| MOQ: | MOQ：500PCS/CTN |
| Delivery Period: | Negotiation |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |

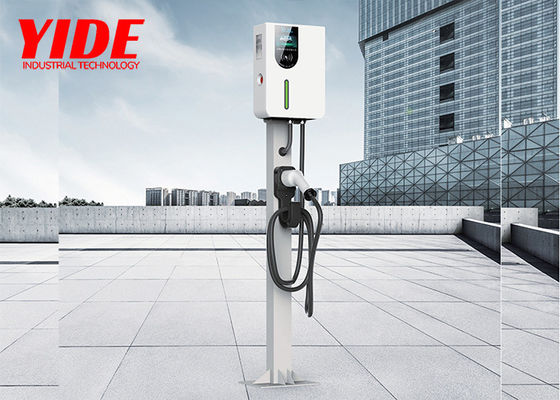

Swipe Card 3.5KW/7KW EV Charging Pile Fast Charging Surge Protection
1. product description
The function of charging piles is like that of tankers in gas stations. Charging piles can be fixed on the ground or wall and installed in public buildings, residential parking lots or public electric car charging stations. They can be used to charge various types of electric cars according to different voltage levels. The input end of the charging piles is directly connected with the AC power grid, and the output end is equipped with charging plugs for charging electric cars. Charging piles generally provide two charging modes: regular charging and quick charging. People can swipe a specific charging card on the human-computer interaction interface provided by the charging pile to carry out corresponding operations such as charging mode, charging time, cost data printing, etc. The display screen of charging pile can display charging amount, cost, charging time and other data.
2. specification
| lnformation of 3.5/7KW AC Charging System | |
| product model | YIDE-AC-3.5KW/7KW |
| input voltage | 220V±15% |
| Rated Frequency | 45-60 |
| output voltage | 220±15% |
| rated current | 16A/32A |
| output maximum power | 3.5KW/7KW |
| Num of charging interfaces | 1 |
| Charging method | swipe card / scan code |
| Cl | Standard RJ45 Interface / 4G/LoRa |
| display screen | 4.3inch/no screen |
| communicating protocol | offline management tool / YKC |
| dielectric strength | ≥2000V |
| leakage current | 30 |
| levels of protection | IP54 |
| work environment℃ | -20~50 |
| Working humidity ℃ | -40~70 |
| Interface type | GB20234.2-2015/Connection mode C |
| Measurement method | lntegrated /independent metering |
| Reliability (MTBF) | 50000h |
| defencive function | overvoltage short Circuit , overload , leakage , surge protection |
| way to install | column |
| Case material | Injection molding |
| ptional items | Charging gun 5m |
| Size(mm) | L260 * W107 * H360 * column H1345 |
6. company profile
Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.
Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.
Our products are suitable for new energy electric vehicles, electric bicycles, electric motorcycles, scooters, balance vehicles and so on
It is also suitable for military equipment, medical aerospace plug-in, automatic industrial equipment and so on
The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.
Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.
We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.
Our mission is to live for safer and more efficient connectivity.
Fill the world with love and sunshine.
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
7. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
|
|
