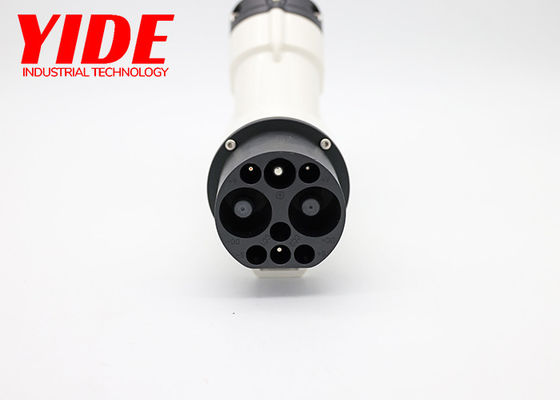

New Energy EV Charging Gun 200A / 250A Single Phase 9 PIN Male

New Energy EV Charging Gun 200A / 250A Single Phase 9 PIN Male

MOQ: Negotiable
Price: Negotiable
Delivery Period: Negotiation
Payment Method: L/C, T/T, Western Union, MoneyGram
Detail Information
Place of Origin
China
Brand Name
YIDE
Model Number
YIDE-607
Material:
Pvc Plastic
Product Name:
Charging Gun
Degree Of Protection:
IP68
Feature:
Waterproof / Temperature Resistance /freeze-proofing
Product Spec:
9PIN Male
Rated Voltage   :
1000V
Rated Current(25°C):
80A /125A / 200A / 250A/
Withstand Voltage:
AC 3000V / 250V / 200V /50HZ /1Min PASS
Mechanical Operation:
<10000 Mating Cycles
Insertion Force:
≤140N
Pull Out Force:
≥70N
Environmental Compliance:
RoHs, Reach
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Delivery Time:
Negotiation
Payment Terms:
L/C, T/T, Western Union, MoneyGram
High Light:

200A EV Charging Gun

,

EV Charging Gun 250A

Product Description

Single Phase New Energy EV Charging Gun 200A / 250A Type 2 Ev Charging Gun



1. product description



New energy charging gun protection level reaches IP68 (working condition). Even in harsh environments, the product can isolate water and enhance the safe use of the product. Two-color paint design, custom colors are acceptable (regular colors orange, blue, green, gray, white) Reserve laser marking space for customers. Provide OEM/ODM services, which is beneficial to customers to expand the market.





2. specification



Brand: YIDE
P/N: YIDE-607
MOQ: 500PCS/PER
Place of Origin: Kunshan City,China
Delivery Time: 1 week
Start Port: Shanghai

General features:
Product Name China charging gun
Product Spec 9PIN Male
Connector locking system Interlock
Degree of protection IP68
Ambient temperature(operation) -25°C~+85°C
Customs tariff number 8536901900
Environmental compliance RoHs, Reach

Electrical parameters:
Rated voltage 1000V
Rated current(25°C) 80A / 125A / 200A / 250A
Withstand voltage AC 3000V / 250V / 50HZ / 1Min PASS
Contact resistance ≥0.5mΩ
Insulation resistance ≥500MΩ / DC500V

Mechanical performance:
Mechanical operation ≤10000 mating cycles
Insertion force ≤140N
Pull out force ≥80N
Wiring range EV 2*25 /35/50/70/80+1*25+2*4+7*1+2(2*1)
Application Area
Charger for Motorcycles and electric vehicles



3. application:



Charger for Motorcycles and electric vehicles



  • Improved Charging Speed: This charger can change the charging speed by adjusting the current. When you choose 16A and 240V modes, the charging speed is about twice as fast as the original 110V charger. Please adjust the current pattern according to the usage conditions and household voltage/current. (8A/10A/13A/16A) Four current patterns selectable, working voltage range 100-240V
  • Safety Protection Function: TUV and CE certified, dustproof and waterproof rating is IP55, and the charging case is made of ABS plastic material that is durable and abrasion resistant. The device comes with a smart chip that detects the charging status. Charging will stop if overcurrent/overpressure/undervoltage occurs. Flashing yellow light to notify you of your charging safety



4. company profile



Company Profile:

Jiaxing Yide Industrial Technology Co., Ltd was founded in 2011. The production base is located in the German Industrial Park, Zhangpu Town, Kunshan City, Suzhou, east of Shanghai, west of Suzhou, convenient transportation, beautiful environment. It is a comprehensive enterprise integrating research and development, production and export..Our products are popular in domestic and European and American markets.



Yide is a Chinese enterprise specializing in the production of high-power waterproof connector + wiring harness components, providing one-stop solutions for customers and Oems. Also is a leading provider of new energy charging pile related products.



Our products are suitable for new energy electric vehicles, electric bicycles, electric motorcycles, scooters, balance vehicles and so on
It is also suitable for military equipment, medical aerospace plug-in, automatic industrial equipment and so on

The company has passed iso9001:2015 quality management system certification, IATF16949:2016 is in the planning, has more than 20 national patents. Products have passed ROHS, REACH, CE, CCC and other certifications.



Yide Industrial Technology Co., Ltd. is committed to providing customers with comprehensive, reliable and efficient charging solutions. We focus on the research and development of connector and new energy charging pile, and have a professional R&D team with strong technical strength. We have a complete product line, including connectors,charging piles, wiring harnesses and other accessories, and provide customized services to meet customers' needs.



We are committed to providing customers with high quality products and services. We have a complete quality control system and advanced testing equipment to ensure the quality of our products. We also provide professional after-sales service to ensure the normal operation of our products.



Our mission is to live for safer and more efficient connectivity.

Fill the world with love and sunshine.



Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.



New Energy EV Charging Gun 200A / 250A Single Phase 9 PIN Male 0





7. FAQ

Why choose us?

1) Using safer and more environmentally friendly materials

2) Adopt high quality brass, copper, brass lead-free alloy

3) Small resistance, fast current

4) Oxidation resistance, waterproof, high and low temperature resistance

5) More than 10 years of quality assurance for brand manufacturers' direct sales

6) According to product requirements + cable configuration

7) OEM+ ODM

8) After-sales service is guaranteed, 24-hour manual customers online
